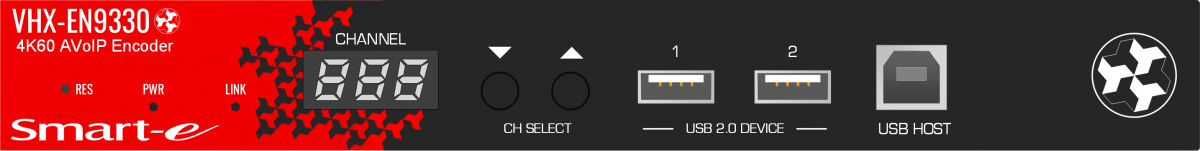

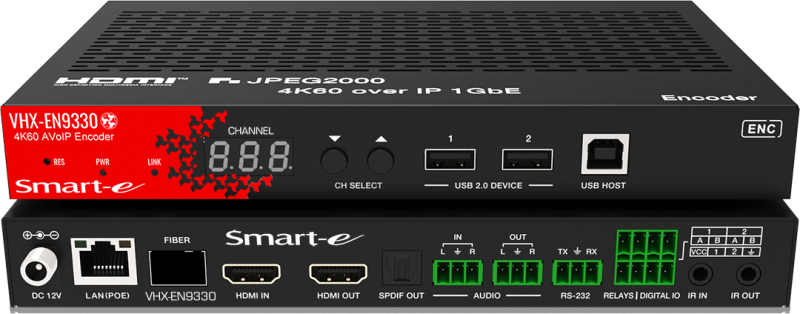

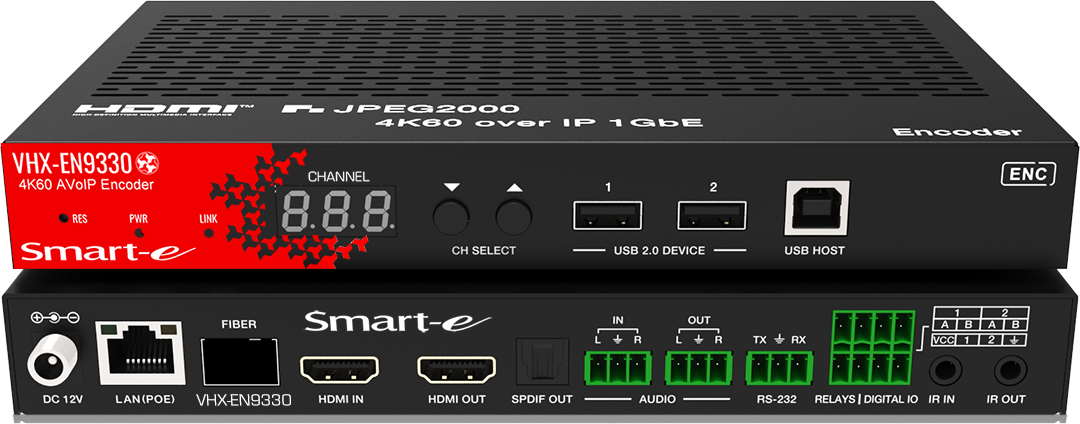

VHX-EN9330 4K 60Hz AVoIP Encoder

The VHX-EN9330 encoder allows the connected HDMI video to be compressed into 2 independent IP streams. The primary JPEG 2000 stream provides a very high quality video and audio transmission with less than a frame duration latency whilst the secondary MJEG stream can be used for monitoring via standard software or third party applications. The VHX-EN9330 can accept HDMI signals up to 4K resolutions and up to 60Hz frame rate.

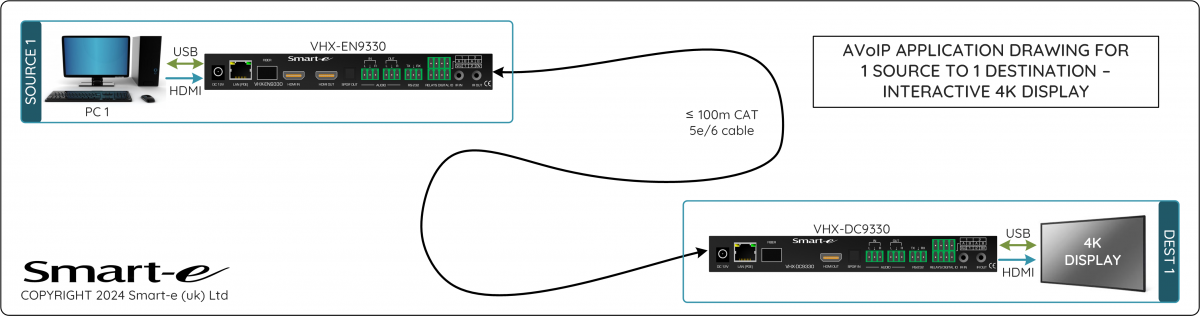

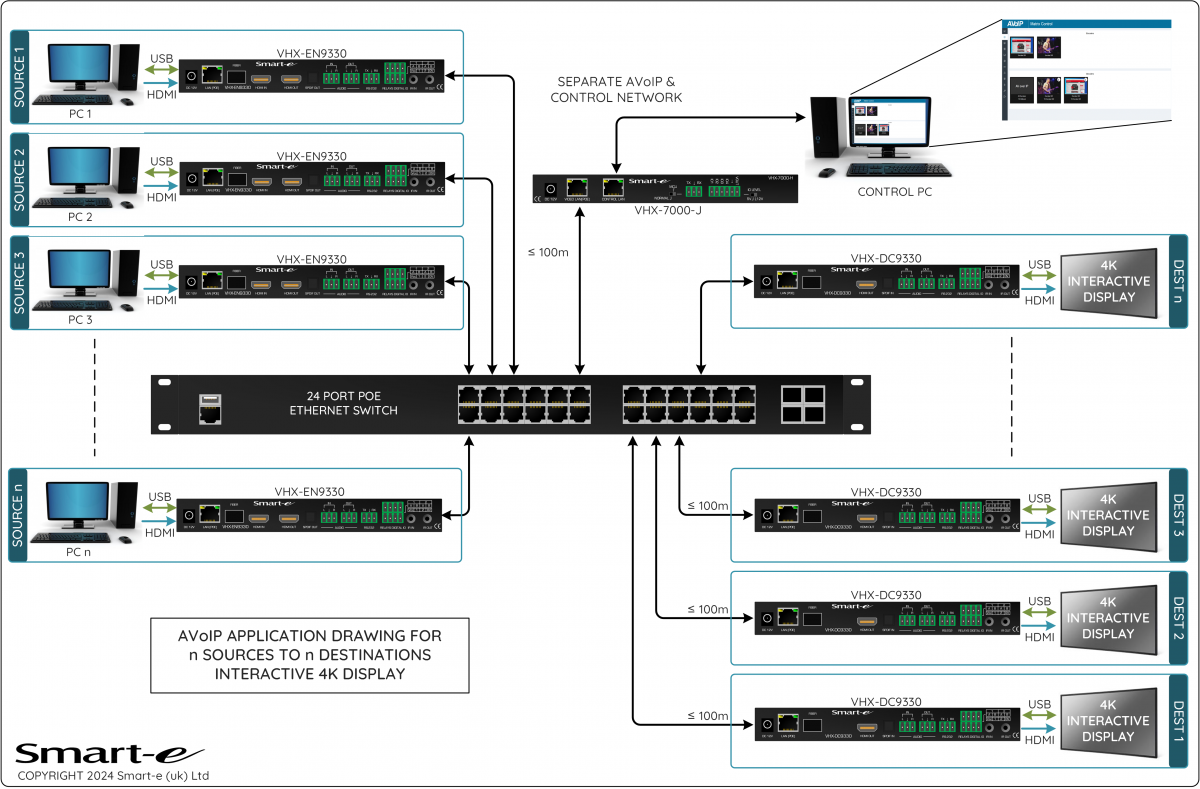

Video streaming is compatible with a standard 1G Ethernet IGMP switcher using the Unicast and Multicast protocols. Point to point, point to multipoint and matrix switching can be achieved easily using industry standard Ethernet switchers and installation enhanced with the POE feature. A USB host connection allows a connected computer to extend both USB V1.1 and V2.0 signal to a VHX-DC9330 decoder which can provide the facility for up to 5 peripherals to be added. Other control signals can also be transmitted over the same network which can be used for RS232, infrared and CEC signals.

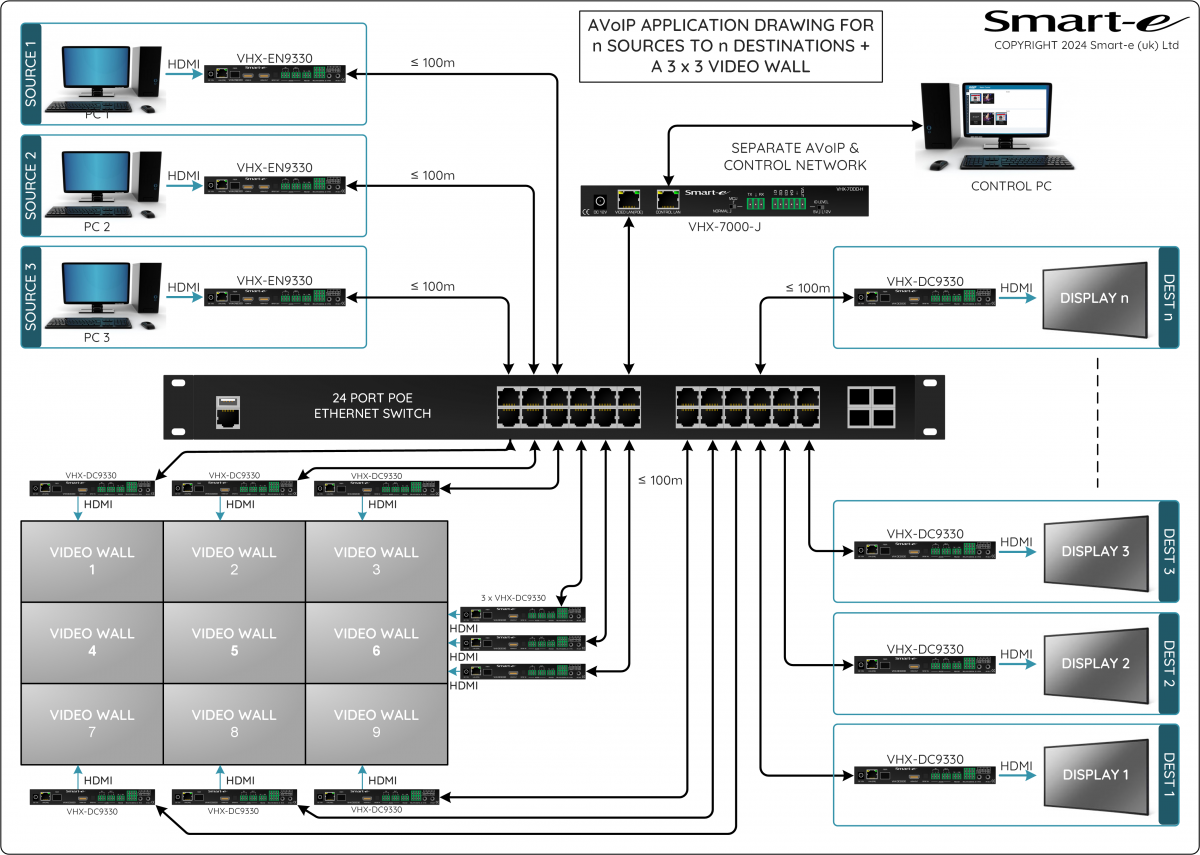

The VHX-EN9330 together with the decoder VHX-DC9330 provide a highly scalable and cost-effective solution for distributing HD video and control signals for a multitude of applications. Video walls can also be created with multiple decoders up to a 9×9 system.
