SDS-922-DVI
100m HDBaseT transmitter/receiver pair for DVI-D, Audio, IR & RS232
Key Features
- DVI-D input
- 3D compatible & HDCP compliant
- Signals over a single 100m CAT 5e-8 cable
- Uses HDBaseT technology

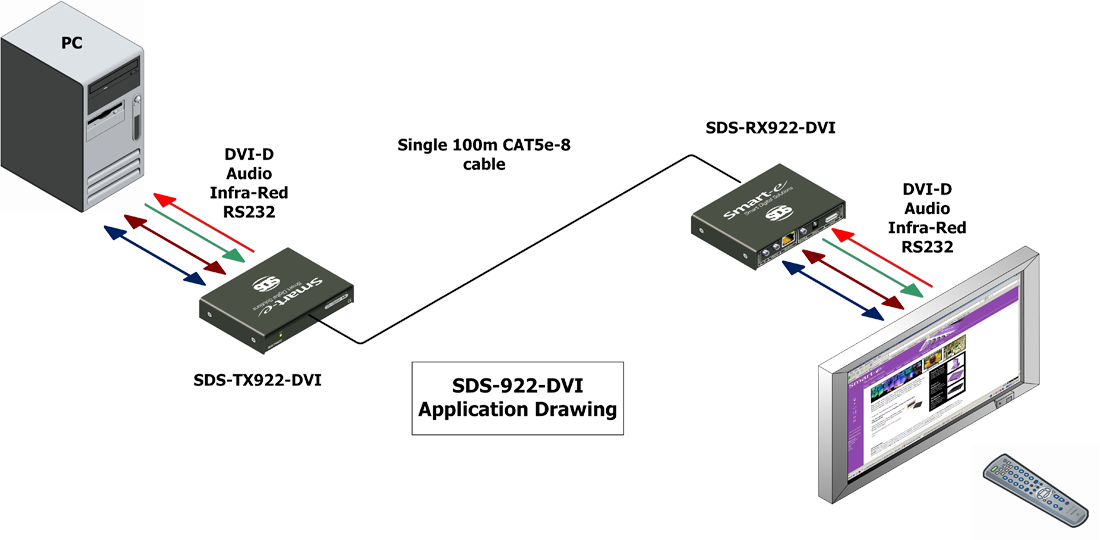

The SDS-922-DVI is a long range extender pair designed to extend DVI-D signals together with reverse IR and bidirection-al RS232 signals over a single twisted pair CAT 5e-8 cable. The units use HDbaseT technology to extend PC resolutions up to 1920×1200 @60Hz together with 1080p @60Hz.
The SDS-922-DVI is a robust professional product designed to facilitate the extension of high resolution digital video sig-nals. An audio embedding function on the transmitter allows a separate analogue audio source to be embedded into the DVI TMDS signal, whilst a looping input allows the user to monitor the transmitted signal.

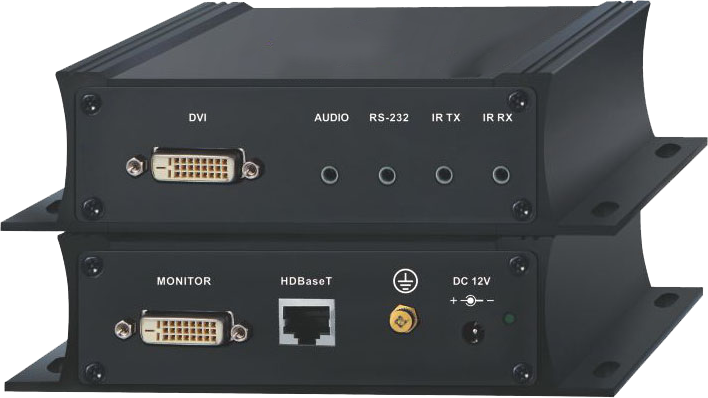

Bi-directional IR transmission together with full duplex RS232 signals can be connected through the same CAT 5e-8 cable. Each box has convenient fixing holes for ease of installation.
Features
- DVI V1.0
- Deep Colour
- 100m of CAT 5e-8 STP cable
- Supports 1920×1200 @60 Hz
- Wide bandwidth IR transmission
- Analogue audio input
- Transparent RS232 pass-through
- Secure DVI-D connector

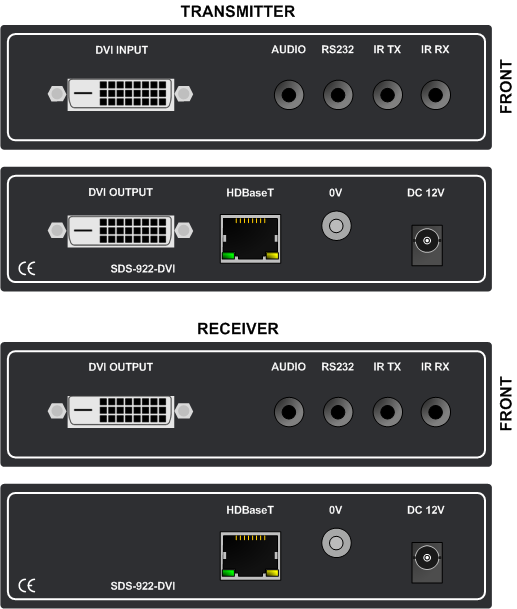

- DVI-D looping output on transmitter
- Convenient fixing holes
Specification
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
| Description | Type | Size |
|---|---|---|
| Datasheet | PDF File | 1,050 KB |
