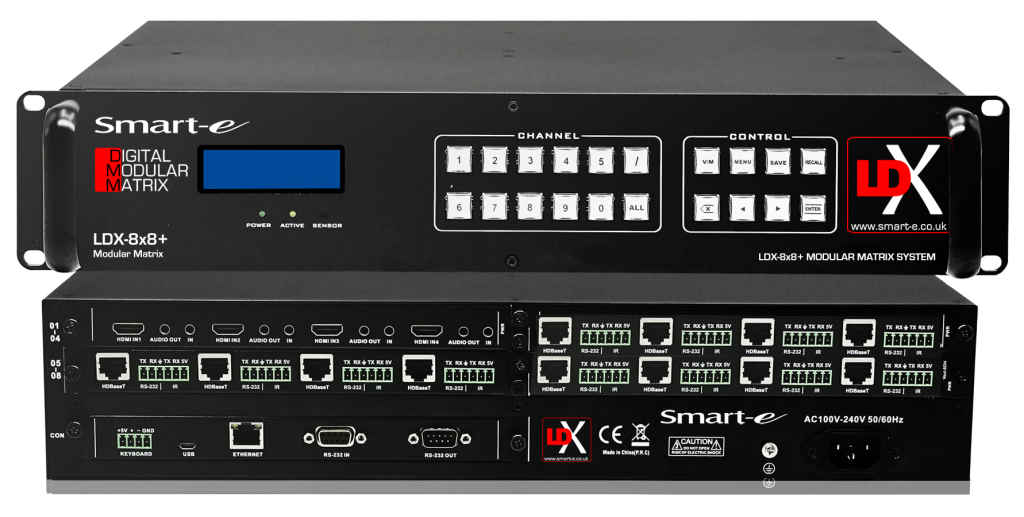

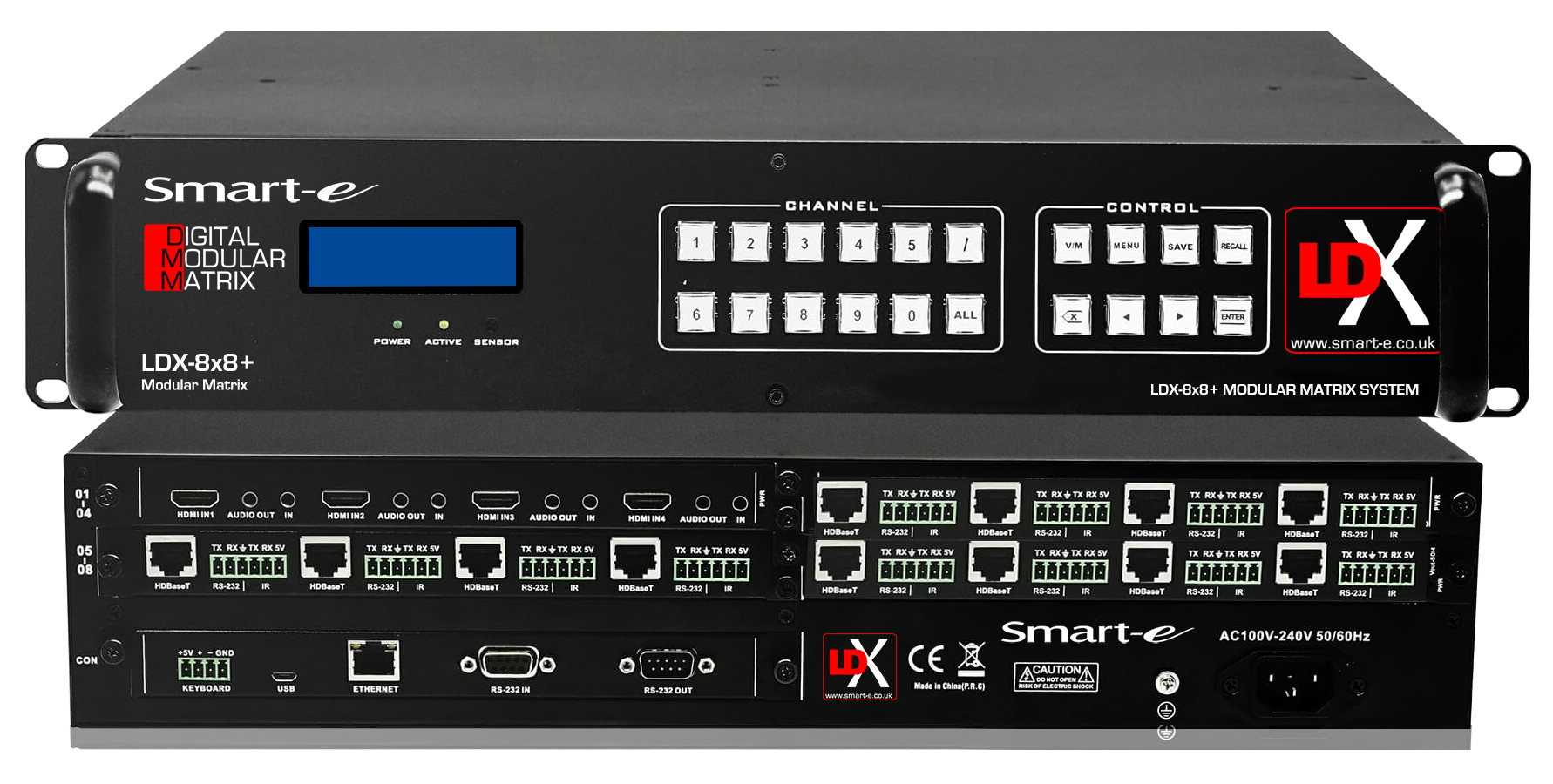

LDX-8×8+
The LDX-8×8+ is a professional flexible Digital Modular Matrix (DMM+) capable of selecting between 8 different devices to 8 displays. Seamless switching together with output video scaling provides a professional image selection whilst 4-way modular input and output cards cater for a wide range of signal formats.
Key Features
- HDMI, DVI, HDBaseT, Fibre, VGA & SDI
- Output video scaling
- Web Browser
- HDMI 1.3a compliant
- 10.2GBps, 1080p@60Hz
- HDCP 1.3 compliant
- PC resolutions to 1920×1200@60 Hz
- Seamless Switching
- POC (remote powering receivers)
- Front panel control

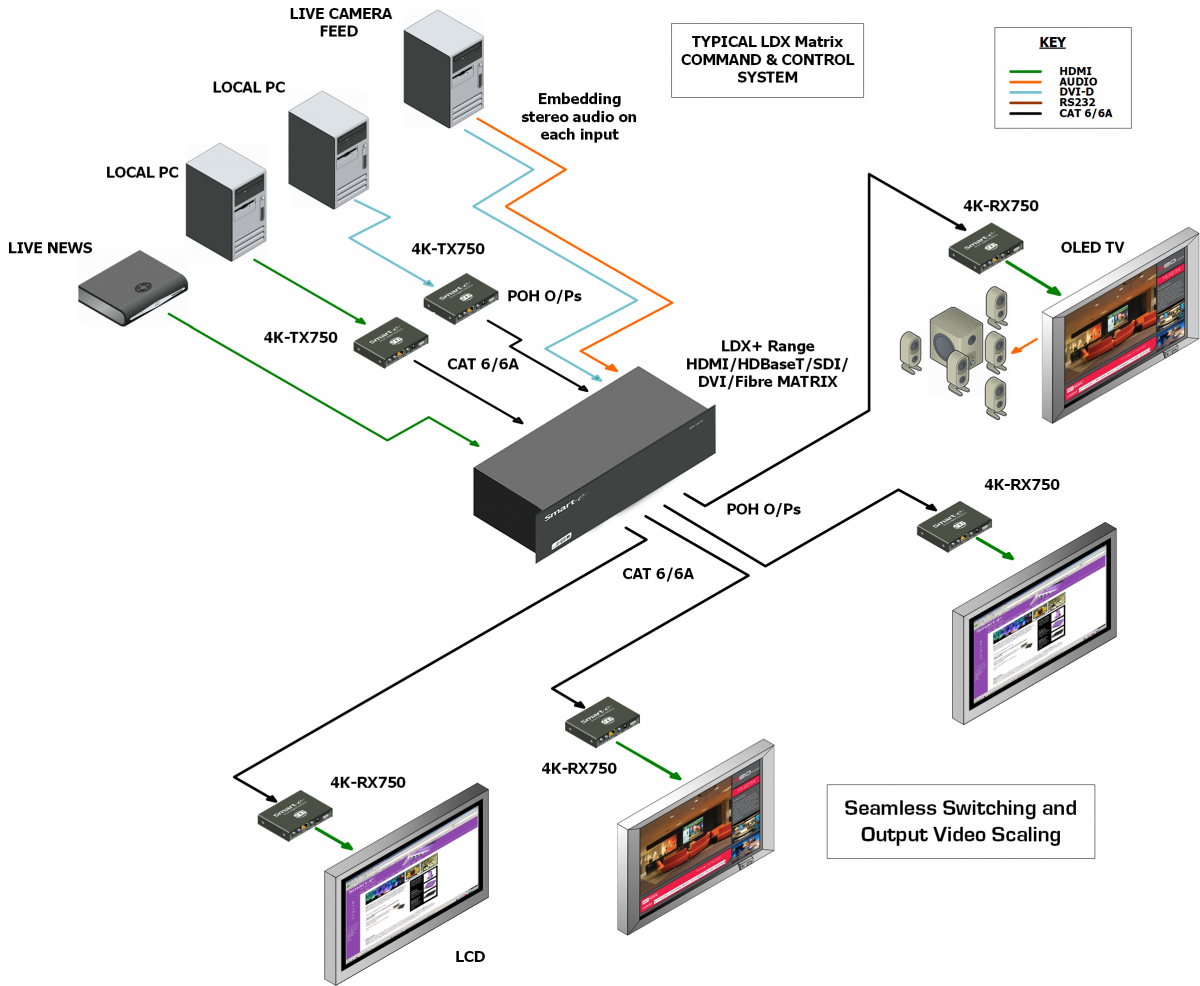

The LDX-8×8+ is a mid sized matrix offering a complete solution for switching and distribution of the most common AV signal types and standard connectivity. Differing signal types can be accommodated by the use of a modular construction. Removeable horizontal blades can be inserted or exchanged allowing inputs and outputs to be expanded in groups of 4 up to the maximum chassis size available. A variety of different blades are presented including: HDMI, DVI, HDBaseT, 3G-SDI and fibre options together with an analogue card capable of accepting RGBHV, YPrPb, Y/C and PAL/NTSC.
All input signals types are converted to an internal standard format allowing the flexibility of conversion to any output signal format. The conversion into an internal co-timed format provides a seamless switching feature allowing images to be changed without frame rolls or the need to go to black. Each output blade has a individual internal scaler allowing every output image to scale to the native resolution of the connected display for a more professional presentation.
The LDX-8×8+ encompasses a comprehensive method of control including IP, an internal web browser, RS232, remote panel and front panel buttons with LCD display. The LDX+ range provides a cost effective modular solution for budget sensitive projects requiring standard routing features at shorter Cat 6 cable lengths of up to 70m.
Control signal routing is offered as standard allowing infrared and RS232 signals to be selected independently between the HDBaseT inputs and outputs. The signals can be connected via the blades directly or through the connected appropriate Cat 6/6A transmitters and receivers. To aim ease of installation and improve power efficiency and heat dissipation, powering of the transmitters and receivers is achieved through the Cat 6/6A cable. DC power is sent via common mode connection across the 4 differential pairs of the network cabling.
The LDX-8×8+ routes the embedded multi-channel audio from the source device along with the video signal but can also be swapped with a locally generated audio signal and inserted via the HDMI or DVI blade. Similarly embedded audio is transmitted inside the output video signal but is also available as a stereo analogue signal on the HDMI and DVI output blades.
A preview card is also available as an output blade option. This features a streamed MPEG signal capable of displaying a composite of up to 4 input images. By using a streamed signal, remote monitoring of the matrix and the source devices is possible, ideal for inaccessible locations and in particular boats and luxury yachts.
Features
- HDMI, DVI, HDBaseT, Fibre, VGA & SDI
- Output video scaling
- 2 way 4K UHD blade now available
- Web Browser
- HDMI 1.3a compliant
- 4:2:0, 10.2Gbps, 1080p@60Hz
- HDCP 1.3 compliant
- PC resolutions to 1920×1200@60 Hz
- Seamless Switching
- POC (remote powering receivers)
- CEC compliant
- Supports Deep Colour (10&12 bit)
- Embedding & de-embedded Audio
- Modular 4 port cards
- Front panel control
- EDID management
- 19″ rack mounting
- RS232 & IR control
- Ethernet control (Web browser)
Specification
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
| Description | Type | Size |
|---|---|---|
| LDX-8×8+ Datasheet | PDF File | 1,050 KB |

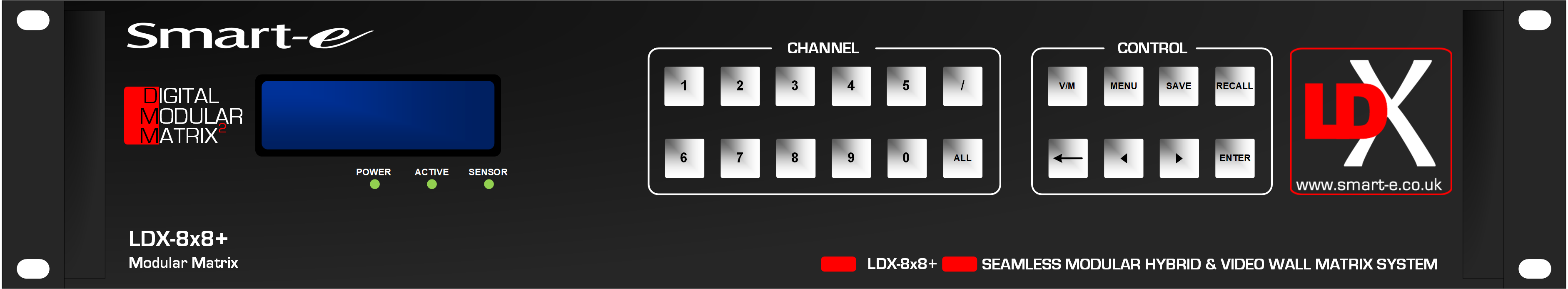

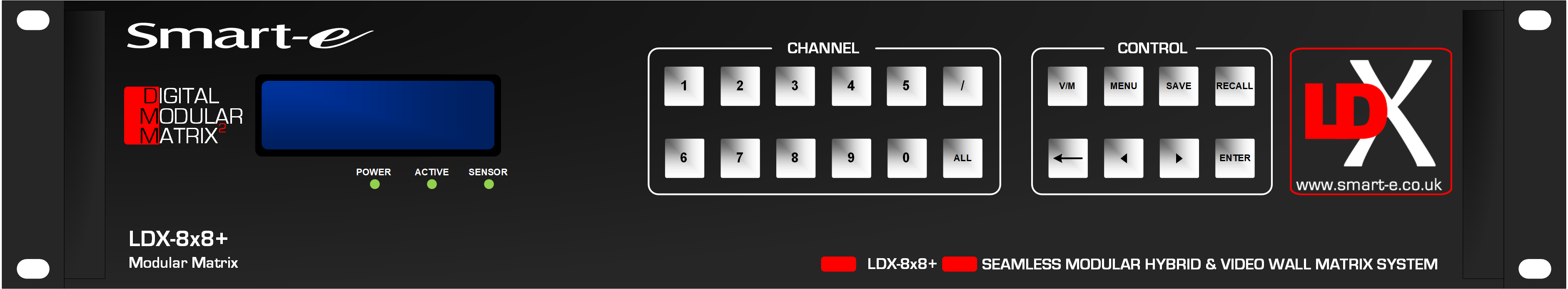

| Front Panel Drawing | PNG File | 150 KB |

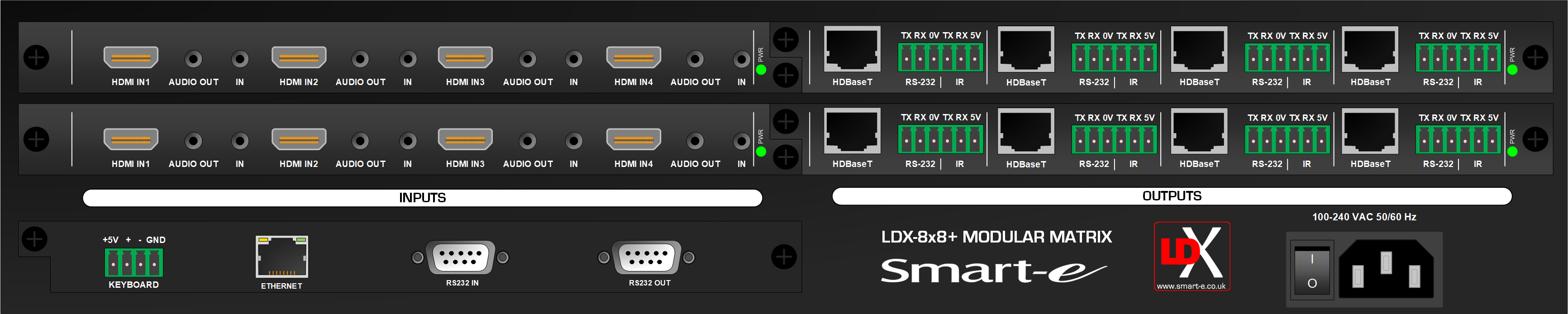

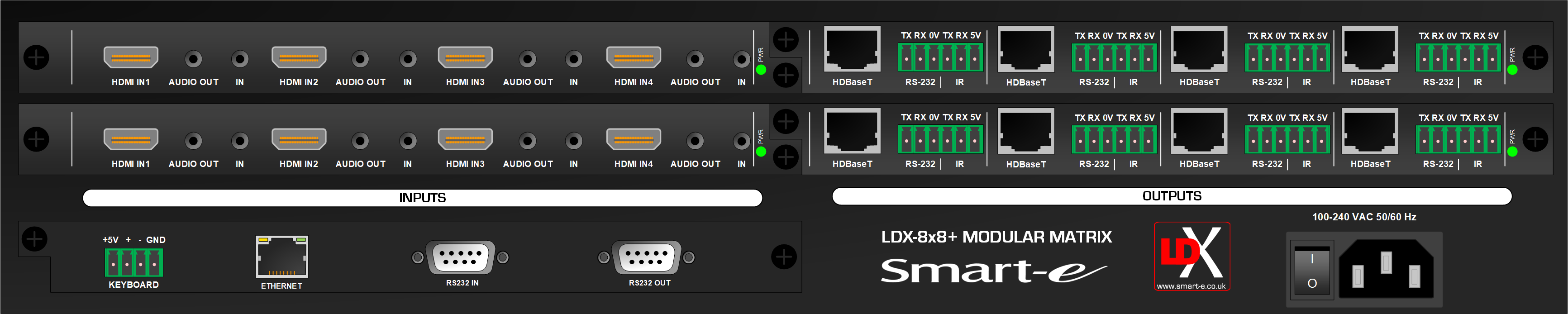

| Rear Panel Drawing | PNG File | 150 KB |
| LDX+ MATRIX SERIES USER MANUAL | PDF File | 2,401 KB |
| Protocol | PDF File | 125 KB |
| 444K-750 Datasheet | PDF File | 470 KB |
Transmitters
4K-TX725 (70m)
Features: HDMI > HDBaseT
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 60Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 115 x 65 x 16 (mm) |
444K-TX750 (70m)
Features: HDMI > HDBaseT
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Selectable |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 60Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 119 x 67 x 20 (mm) |
Receivers
4K-RX725 (70m)
Features: HDBaseT > HDMI
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 60Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 115 x 65 x 16 (mm) |
444K-RX750 (70m)
Features: HDBaseT > HDMI
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 60Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 119 x 67 x 20 (mm) |
Input Blades
LDX-RX4-HDBT
HDBaseT Input Blade 4 x HDBT TXs
The LDX-RX4-HDBT is a 4 port HDBaseT Lite input blade for the DMM2 series.
Each of the 4 inputs are fully independent and can be connected to a remote smart-e HDBaseT transmitter using a single Cat5/6 cable up to 70m. We recommend using Cat 6a or Cat 6 STP.
| Inputs (Receivers) | 4 x Cat 5/6 STP HDBaseT |
| Connector Interface | 4 x RJ45 |
| Protocol | HDBaseT Lite |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| IR/RS232 Support | Pass-through |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-IP4-HDMI
HDMI Input Blade (4 x HDMI Inputs)
The LDX-IP4-HDMI is an 4 port HDMI and stereo audio input blade for the DMM2 series.
Each of the 4 inputs are fully independent with active-input technology supporting extended input cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x HDMI & AA |
| 3D | HDMI 1.4 3D |
| Protocol | HDMI 1.4, HDMI 1.3a, DVI 1.0, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded/Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM2 chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-IP4-DVI
DVI-D Input Blade (4 x DVI-D Inputs)
The LDX-IP4-DVI is an 4 port DVI and stereo audio input blade for the DMM2 series.
Each of the 4 inputs are fully independent with active-input technology supporting extended input cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x DVI-D |
| Gain | 0dB |
| Protocol | DVI 1.0, HDMI 1.3a, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-IP4-VGA
Multi-Format Analogue Input Blade
The LDX-IP4-VGA is a 4 port multi-format analogue and stereo audio input blade for the DMM series.
Each of the 4 inputs are fully independent and can take a variety of input formats @ 1920×1200 60Hz. Including RGBHV, CV and YPrPb.
| Inputs | 4 x Multi-format Analogue Video |
| Connector Interface | 4 x HD15 socket |
| Signal Type | RGBHV/YPrPb/CV |
| Bandwidth | 380 MHz |
| Differential Phase | +/-0.1°,3.58-4.43 MHz |
| Differential Gain | +/- 0.1%, 3.58-4.43 MHz |
| Impedance | 75Ω |
| Gain | 0dB |
| Audio | Analogue Stereo |
| Max Input Cable Length | Up to 15m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-IP4-3GSDI
3G-SDI Input Blade (4 x 3G/HD-SDI Inputs)
The LDX-IP4-3GSDI is a 4 port 3G-SDI, HD-SDI and/or SDI input blade for the DMM2 series.
Each of the 4 inputs are fully independent and can take a variety of input formats @ 1920×1200 60Hz. Including 3G-SDI, HD-SDI and also SDI.
| Inputs | 4 x looping input SDI (BNC) |
| Format | SDI, HD-SDI and 3G-SDI |
| Protocol | SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI |
| Interface Bandwidth | 3G-SDI 2.970Gbps & 1.001 HD-SDI 1.485Gbps & 1.001 SDI 270Mbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | 400 / 700 ps |
| Range | 0.8V p-p +/-10% |
| DC Offset | 0V +/-0.5 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Overshoot / Mobile | <10% / <540ps +/-10% |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-IP4-MFB
Optical Fibre Input Blade (4 x MFB Inputs)
The LDX-IP4-MFB is a 4 port Multi-mode optical fibre input blade for the DMM2 series.
Each of the 4 inputs are fully independent with active-input technology supporting extended input fibre lengths of up to 300 meters @ 1920×1200 60Hz.
| Inputs | 4 x SC Optical fibre interface |
| Format | Multimode |
| Wavelength | 850nm |
| Interface Bandwidth | Forward: 6.25 Gbps / Reverse: 3.125 Gbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | <0.3 Tbit (20%-80%) |
| Clock Jitter | <0.15 Tbit |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Fibre Type | OM3 Multimode |
| Max Fibre Length | 300m |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
Output Blades
LDX-TX4-HDBT
HDBaseT Output Blade (4 x HDBT TXs)
The LDX-TX4-HDBT is a 4 port HDBaseT Lite output blade for the DMM2 series.
Each of the 4 outputs are fully independent and can be connected to a remote smart-e HDBaseT receiver using a single Cat5/6 cable up to 70m. We recommend using Cat 6a or Cat 6 STP.
| Outputs (Receivers) | 4 x Cat 5/6 STP HDBaseT |
| Connector Interface | 4 x RJ45 |
| Protocol | HDBaseT Lite |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| IR/RS232 Support | Pass-through |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-OP4-HDMI
HDMI Output Blade (4 x HDMI Outputs)
The LDX-OP4-HDMI is a 4 port HDMI and stereo audio output blade for the DMM2 series.
Each of the 4 outputs are fully independent with active-output technology supporting extended output cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x HDMI & AA |
| 3D | HDMI 1.4 3D |
| Protocol | HDMI 1.4, HDMI 1.3a, DVI 1.0, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded/Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM2 chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-OP4-DVI
DVI-D Output Blade (4 x DVI-D Outputs)
The LDX-OP4-DVI is a 4 port DVI and stereo audio output blade for the DMM2 series.
Each of the 4 outputs are fully independent with active-output technology supporting extended output cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x DVI-D |
| Gain | 0dB |
| Protocol | DVI 1.0, HDMI 1.3a, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-OP4-VGA
Multi-Format Analogue Output Blade
The LDX-OP4-VGA is a 4 port multi-format analogue and stereo audio output blade for the DMM2 series.
Each of the 4 outputs are fully independent and can take a variety of input formats @ 1920×1200 60Hz. Including RGBHV, CV and YPrPb.
| Inputs | 4 x Multi-format Analogue Video |
| Connector Interface | 4 x HD15 socket |
| Signal Type | RGBHV/YPrPb/CV |
| Bandwidth | 380 MHz |
| Differential Phase | +/-0.1°,3.58-4.43 MHz |
| Differential Gain | +/- 0.1%, 3.58-4.43 MHz |
| Impedance | 75Ω |
| Gain | 0dB |
| Audio | Analogue Stereo |
| Max Input Cable Length | Up to 15m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-OP4-3GSDI
3G-SDI Output Blade (4 x 3G/HD-SDI Outputs)
The LDX-OP4-3GSDI is a 4 port 3G-SDI, HD-SDI and/or SDI output blade for the DMM2 series.
Each of the 4 outputs are fully independent and can take a variety of output formats @ 1920×1200 60Hz. Including 3G-SDI, HD-SDI and also SDI.
| Outputs | 4 x looping SDI (BNC) |
| Format | SDI, HD-SDI and 3G-SDI |
| Protocol | SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI |
| Interface Bandwidth | 3G-SDI 2.970Gbps & 1.001 HD-SDI 1.485Gbps & 1.001 SDI 270Mbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | 400 / 700 ps |
| Range | 0.8V p-p +/-10% |
| DC Offset | 0V +/-0.5 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Overshoot / Mobile | <10% / <540ps +/-10% |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
LDX-TX4-MFB
Optical Fibre Output Blade (4 x MFB Outputs)
The LDX-TX4-MFB is a 4 port Multi-mode optical fibre output blade for the DMM2 series.
Each of the 4 outputs are fully independent with active-output technology supporting extended output fibre lengths of up to 300 meters @ 1920×1200 60Hz.
| Inputs | 4 x SC Optical fibre interface |
| Format | Multimode |
| Wavelength | 850nm |
| Interface Bandwidth | Forward: 6.25 Gbps / Reverse: 3.125 Gbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | <0.3 Tbit (20%-80%) |
| Clock Jitter | <0.15 Tbit |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Fibre Type | OM3 Multimode |
| Max Fibre Length | 300m |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
