4K-TX941
100m 4K compatible 4 port HDBaseT splitter, includes RS232 passthrough and EDID management. Resolutions 4k,2k, 1080p@60Hz, 3D fully HDCP 2.2 compliant
Key Features
- RS232 pass-through
- Ultra HD 2K and 4K, 1080p resolutions
- HDCP 2.2 compliant, HDMI V1.4
- Supports 1920×1200 @ 60 Hz
- 1– 4 HDBaseT splitter
- 100m CAT 6/6A extension—HDBaseT

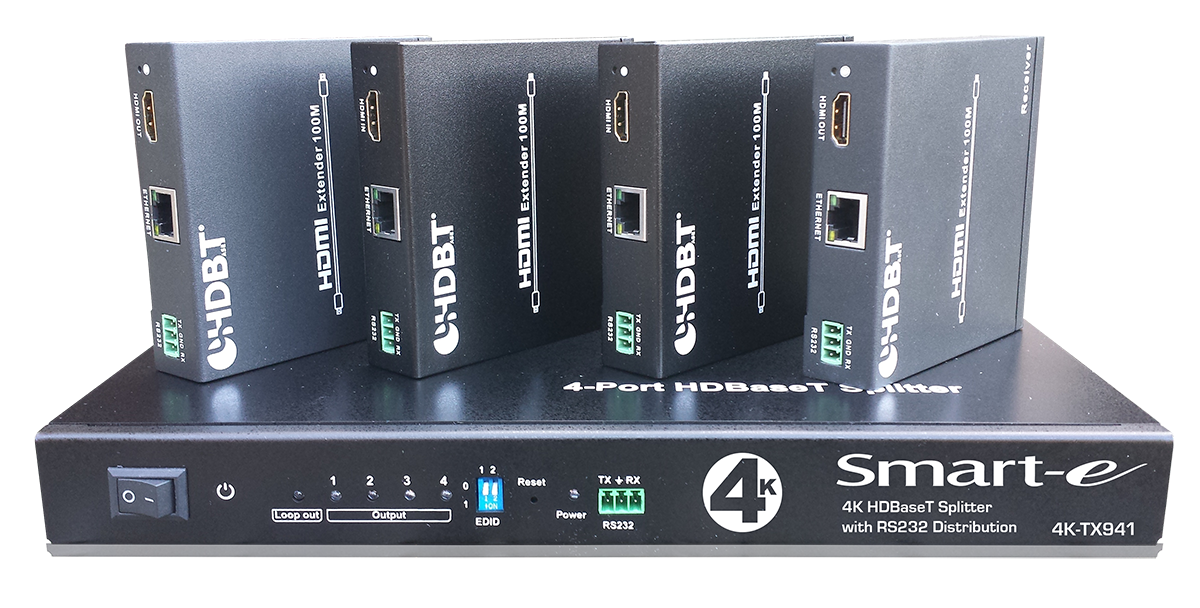

The Smart-e 4K-TX941 is a 1 in and 4 out HDBaseT splitter with RS232 pass-through capable of transmitting 4K UHD signal over 100m of structured cabling (using the appropriate receiver)
The 4K-TX941 is a self contained HDBaseT splitter capable of transmitting HDMI signals up to 4K UHD resolutions over 100m of CAT 6/6A cable.

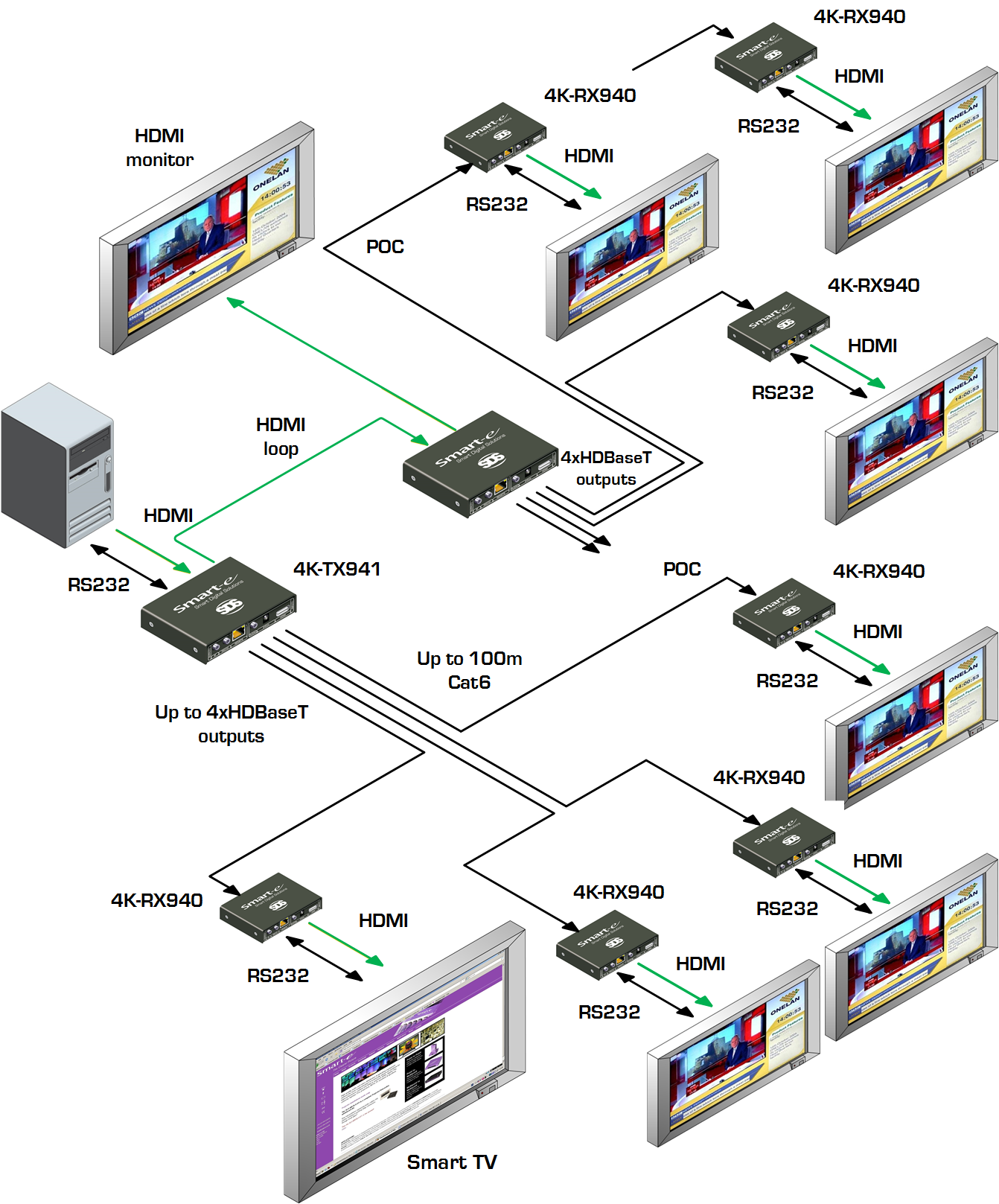

A single HDMI input can be connected to the rear of the unit where it gets split internally and then fed to 4 separate HDBaseT outputs. Each receiver (4K-RX940) decodes the HDBaseT protocol back to HDMI and RS232. Power is provided from the transmitter through the same Cat cable so there is no need for bulky PSUs at the display end. A secure lockable DC connector on the splitter provides a reliable power connection.
Each HDBaseT connection also allows for RS232 signals to be received back from the receiver enabling remote control of the source device. Fully HDCP 2.2 compliant this 4K-TX941 compact unit is ideal for digital signage use in Education, Entertainment and Retail Market.
Features
- Ultra HD 2K and 4K, 1080p resolutions
- HDCP 2.2 compliant, HDMI V1.4
- Supports 1920×1200 @ 60 Hz
- 1– 4 HDBaseT splitter
- 100m CAT 6/6A extension—HDBaseT
- 4K@60Hz colour space 4:2:0
- Looping HDMI input
- RS232 pass-through
- Dolby TrueHD, DTS-HD Master Audio
- Total 10.2 Gbits/s data rate
- Remote powers the receivers (POC)
- Lockable DC connector
- EDID management
- Ethernet pass-through (output 1)

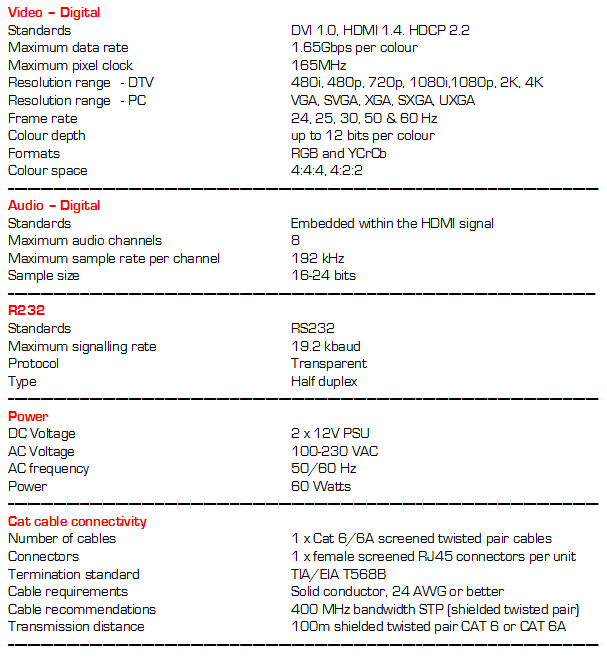

Specification
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
| Description | Type | Size |
|---|---|---|
| Datasheet | PDF File | 796 KB |
Accessories
SM-EYEN
Narrow Band Infra-Red receiver eye for 38 KHz modulated signal. Good noise rejection, range 8-10 metres.
SM-LED
Infra-Red emitter to remote control of source devices. This unit is compatible with all Smart-e products.
Receivers
4K-RX940 (100m)
| Connector Interface | RJ45 |
| Protocol | Full HDBaseT (100m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 30Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 100m |
| Power | 12V POC |
| Dimensions | 70 x 65 x 25 (mm) |
