4K-725

Flexible and comprehensive HDMI extender solution using CAT 6/6A cable.

Key Features

  • Easy to install, inexpensive CAT 6/6A cable
  • Outputs reach up to 70m
  • Support HDMI up to 297 MHz TDMS clock
  • HDCP/EDID/DCC transparent link
  • HDMI resolutions 4K, 2K & 1080p
  • HDCP 2.2 compatible
  • Full duplex RS232 passthrough
  • High Dynamic Raqnge (HDR) with BT.7090 colour space

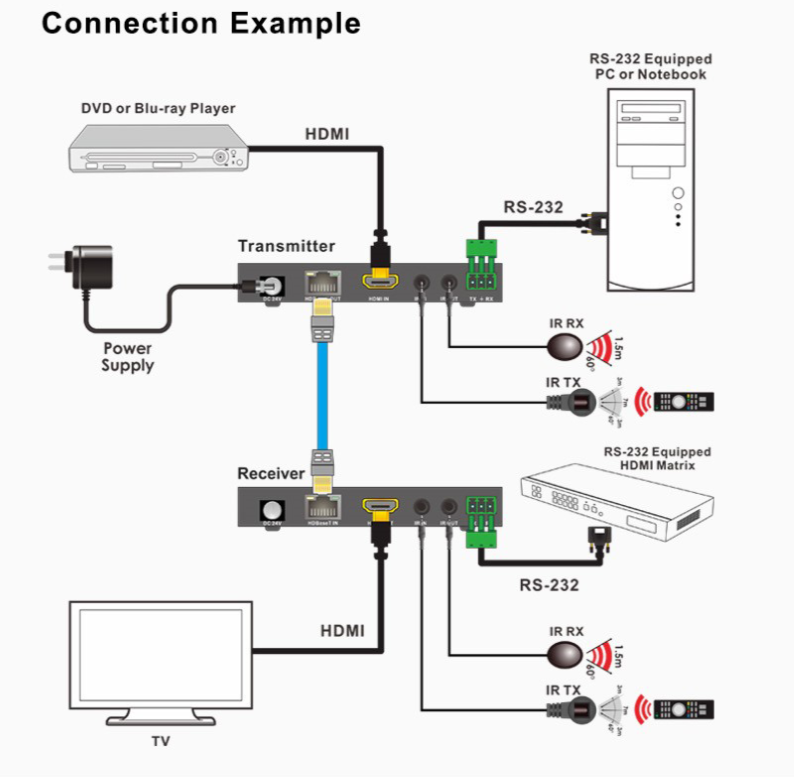

Application

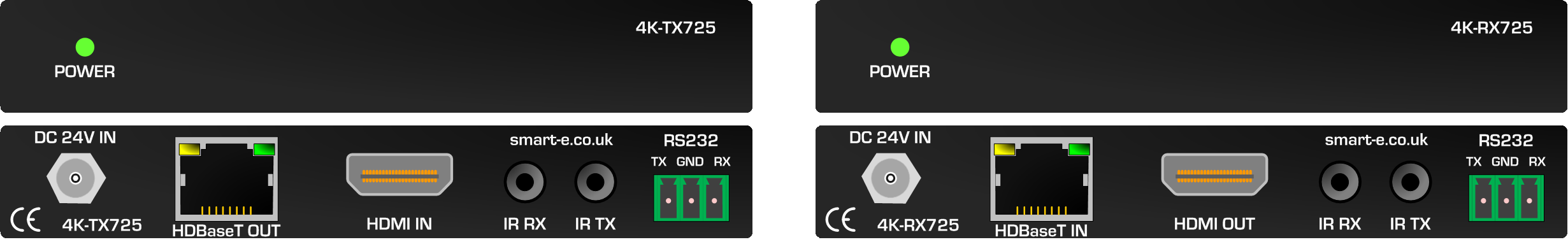

Panel Front & Back

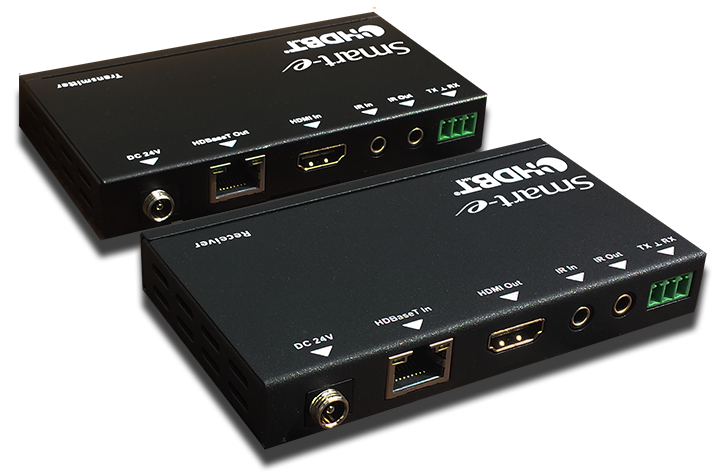

The 4K-725 is a flexible and cost effective solution to extending HDMI, bi-directional IR, full duplex RS232 and POC (remote power over cable). Consisting of a transmitter/receiver pair, both units are compact and come with IR accessories. By incorporating the Lite HDBaseT technology 4K UHD HDMI signals can be transmitted up to 70m away.

The 4K-725 is a HDBaseT transmitter/receiver pair capable of transmitting UHD HDMI signals up to 4K UHD resolutions. The extender pairs provide the pass through of wide band bi-directional InfraRed signals and full duplex RS232 up to 115 Kaud. Whilst POH power (24V) can be sent by either the TX or RX  through the CAT 6/6A cable to provide power to the remote end. All that is required is a single CAT 6/6A cable connection to provide all these features.

The 4K-RX725 or 4K-TX725 can connect to any other product in the 4Konnect range as an extender into or out of a matrix or splitter.

Features

  • Easy to install, expensive CAT 6/6A cable
  • Outputs reach up to 100m
  • Support HDMI up to 297 MHz TDMS clock
  • HDCP/EDID/DCC transparent link
  • HDMI resolutions 4K, 2K & 1080p
  • HDCP 2.2 compatible
  • Full duplex RS232 passthrough
  • Bi-directional IR pass through
  • 1 x CAT 6/6A STP/FTP cables
  • Supplies 24V remote power (POC) to either end
  • Uses HDBaseT technology
  • Status LEDs
  • Compact TX/RX unit – 18mm high
  • Secure DC connection

Specification

Specification File

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 796 KB

Accessories

SM-EYEN

SM-EYEN_s

Narrow Band Infra-Red receiver eye for 38 KHz modulated signal. Good noise rejection, range 8-10 metres.

SM-LED

Infra-Red emitter to remote control of source devices. This unit is compatible with all Smart-e products.
